Magnetic Resonance explained

The rotation of the charged protons makes them magnetic. In the absence of field, the directions of the magnetic dipoles are random (figure of unknown origin).

Each atomic nucleus of hydrogen (a proton) behaves like a small magnet with a north and a south pole. Like compass needles, protons tend to align along the direction of an applied magnetic field. Hence, a sample that contains hydrogen atoms will be magnetized by the field. The sample literally acquires a north and a south pole. If a compass needle in rest is given a push, it will oscillate around the north direction before it eventually comes to rest. As long as the needle - or any other magnetic dipole - oscillates, it will emit radio waves. If, for example, the needle swings three times per second, it will emit radio waves at a 3 Hz frequency as radio waves are oscillations of the magnetic field. The reverse process occurs if the compass is subject to radio waves from an external source that push an initially resting needle in synchrony with its natural oscillation frequency: The needle will start swinging and the oscillation will gain amplitude, just as a child in a swing will, if it is pushed in synchrony with its natural motion.

These aspects can be explored with the software below, that will leave students with a good understanding of the basic magnetic resonance phenomenon after a few minutes.

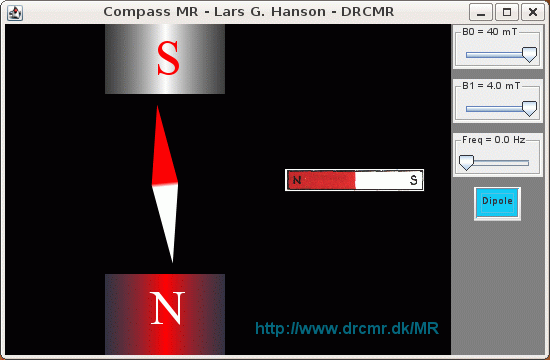

Use this software to explore the resonance phenomenon (click it ). Try to make the
needle oscillate significantly in a strong magnetic field by pushing it with a weak,
resonant magnetic field. When the needle oscillates, radio waves are emitted from it.
Alternatively, see YouTube demonstration.

Similarly, the magnetization of a magnetized sample can be pushed away from equilibrium even by weak radio waves, if these are applied at the resonance frequency. Afterwards when the external radio wave source is turned off, radio waves will be emitted from the sample as long as the oscillation is ongoing. This is the MR signal that is proportional to the amplitude of the oscillation.

Traditional compasses in a magnetic field will eventually all come to rest and will point toward north. The situation is different for nuclei in a liquid, as these are bouncing off each other due to thermal agitation that is also the source of diffusion. The nuclei experience random interactions with their ever-changing local environment. Hence the nuclear "compass needles" continuously experience tiny magnetic pushes that change randomly. At room temperature, the energies associated with thermal collisions between atoms are much higher than needed to reorient a nucleus in a magnetic field. The nuclei are well shielded, however, and only interact weakly with environment. Hence they are only significantly disturbed on time scales of, e.g., 100 ms. During such a period, the nuclei in a liquid have "collided" (interacted magnetically) with vast amounts of other nuclei, but since the resulting pushes are weak and random, their motion is virtually indistinguishable from the motion of non-interacting particles over relatively long periods (a millisecond is long when compared to the time scale of precession, and to the correlation time defined as the typical time between changes in the local environment of a nucleus).

The situation can be compared to that of compasses bouncing in a running tumble drier: The compasses will never be left alone long enough for the needles to come to rest pointing toward north. Nevertheless, there will be a tendency for the compasses to point in that direction. The individual needle does not reach a steady state, while the distribution of needle directions rapidly will. This equilibrium distribution is nearly spherical but slightly skewed toward north. Hence, the net magnetization of many bouncing compasses is essentially at rest and point toward north as shown here:


Equilibrium magnetization before and after application of a strong magnetic field that polarizes the sample as reflected in increased density of arrows in the direction of the field. The magnetic field also makes the spin distribution rotate around the direction of the field (here vertical). Click figures to enlarge. The book chapter preview below describes in detail why these figures are better representations of thermal equilibrium than typical "cone figures", also from a QM perspective.

There are differences between compass needles and protons worth mentioning at this point. Whereas compass needles will swing through north, the motion of the proton magnetic moment is precession around the north direction (vibration vs. precession). The difference originates from a peculiar nuclear property: All protons appear to be spinning at a particular rate, whether or not they are in a magnetic field. In fact, the magnetic property of nuclei is a consequence of this spin that makes each of them magnetic along its spin axis. Hence protons behave like normal bar magnets that happen to be spinning around their north-south axis (note: the spin axis is in general different from the precession axis). A hypothetical compass needle spinning like this would, if unrestrained, also precess around north rather than swing directly toward this direction (due to its angular momentum). Similarly, a spinning top on a table will slowly precess around the direction of the gravitational field. This difference between nuclei and normal compass needles is not of fundamental importance for the magnetic resonance phenomenon, but it is certainly worth keeping in mind. The emitted radio waves, for example, are circularly polarized due to the precession. Similarly, the radio waves used for rotating the nuclei are preferably also circularly polarized. There is another related difference between normal compass needle oscillations and precession: The oscillation frequency of a normal compass needle is only independent of amplitude for small oscillations, whereas the proton precession frequency depends only on the field.

Generally, a magnetic field makes the near-spherical spin distribution rotate around the direction of the field. Hence, a static field makes it rotate around a fixed axis. An additional resonant, circularly polarized radio wave field is characterized by a field vector that is orthogonal to the static field and stationary relative to the rotating spin distribution. The spins will precess around this rotating field vector. This motion may sound complicated, but is simple when described in the rotating frame of resonance. The animation below illustrates how a radio wave pulse can rotate the spin-distribution if it is applied at the Larmor frequency.

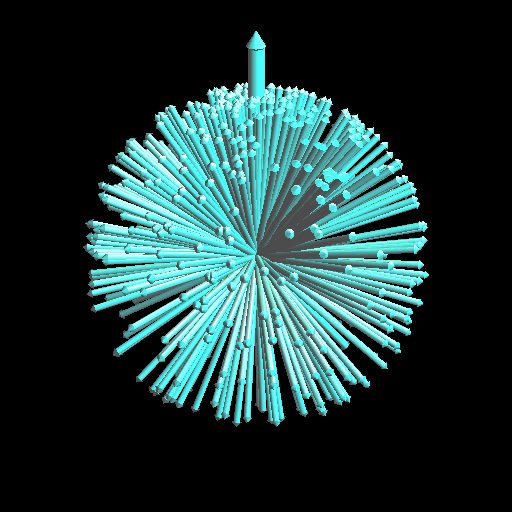

Animation showing the orientation distribution of the magnetic dipoles (spins)  before and during excitation. The main magnetic field makes the ensemble of nuclei precess and skews the spin distribution toward the direction of the field as indicated by the density of spins initially being higher along this direction (vertical in the figure). When a resonant radio frequency field is applied, the entire magnetization distribution is rotated around an axis that is rotating perpendicularly to the magnetic field. The resulting motion of the net magnetization is illustrated with the circular arrow. A resonant field can make the magnetization perform a full 360-degree rotation as shown in the animation, but normally smaller flip angles are used, e.g. 90 or 180 degrees. Further aspects of spin dynamics can be explored interactively by use of a freely available Bloch simulator. Click figure to enlarge or here for even larger version.

The effect of resonant radio waves is also illustrated in the figure below that shows the rotation of the magnetization distribution resulting from application of a resonant radio frequency pulse.

Resonant radio waves rotate the equilibrium magnetization in the rotating frame of resonance. Click figures to enlarge.

In addition to the externally applied fields, each nucleus experiences fluctuating magnetic fields (i.e. radio waves) generated by other nuclei that it happens to meet. Only if these random radio waves approximately meet the resonance condition, i.e., occasionally push the magnetization in synchrony with the precession, will they be effective in changing the spin energy that is proportional to the longitudinal magnetization. Such inelastic interactions are needed for T1-relaxation to occur and T1 is consequently minimal when the correlation time equals the precession period. Whereas energy-preserving elastic interactions do not change the longitudinal magnetization, they can still change the transversal phase relations and therefore cause irreversible coherence loss, i.e., T2-relaxation. In other words: Each of two neighboring nuclei will precess in the static field and in the field generated by the other (spin-spin interaction), but this process cannot change the total longitudinal magnetization since energy is preserved. Only when the environment (lattice) acts as a reservoir or supply of energy, can magnetic interactions change the longitudinal magnetization. Therefore T2- and T1-relaxation are sometimes called spin-spin and spin-lattice relaxation, respectively. Since all interactions cause T2-relaxation but only a subset cause T1-relaxation, T2 is always shorter than T1.

Further details are provided in the presentation below and in lecture notes. Outlines of proofs based on quantum mechanics are in the article Is Quantum Mechanics necessary for understanding Magnetic Resonance? It should be stressed that quantum mechanics is not superfluous for physics and chemistry students, for example, that will engage in spectroscopy or in detailed calculations of relaxation. However, It is believed that all MR students will also benefit from learning a correct, intuitive and precise classical description. The connection between classical and quantum NMR descriptions is described in depth in a new book chapter The ups and downs of NMR described by classical and quantum mechanics (see above).

The award-winning Bloch Simulator that provides additional insight into many MR techniques.
See http://www.drcmr.dk/bloch

 Book chapter preview addressing the relation between classical and quantum descriptions of magnetic resonance (page 141 to 171). Excerpt from "Anthropic Awareness - The Human Aspects of Scientific Thinking in NMR...", 32 pages, edited by C  Szántay, Jr., Elsevier, 2015.
Access via ScienceDirect and Google Books.  Reviews are available at Amazon.
